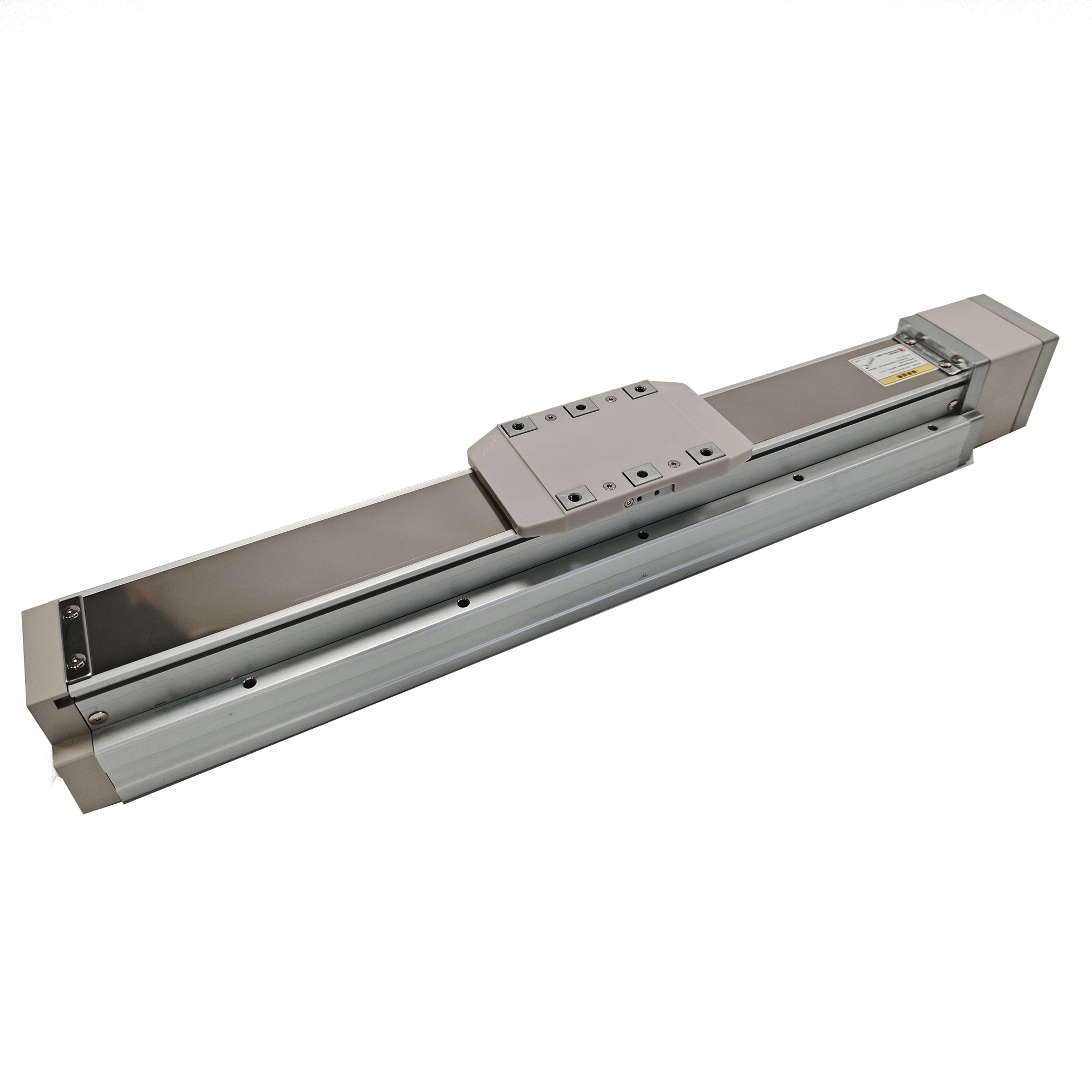

MK Series EU-Spec Synchronous Belt Linear Slides
High-performance linear motion modules designed specifically to meet European industrial standards. Integrating German precision manufacturing and modular design, they offer both long-stroke expandability and stable load capacity, serving as a core component in automated systems.
Core Application Areas & Performance
1. Logistics & Warehouse Automation
In cross-border e-commerce intelligent sorting centers, the MK slide (5000mm stroke model) acts as the main conveying axis, driving sorting carts at 2m/s. Its 200KG maximum horizontal load easily handles full cartons, while ±0.1mm accuracy ensures precise positioning at scanning stations--boosting overall efficiency by 30% compared to traditional chain conveyors.
2. Automotive Final Assembly Lines
At vehicle chassis assembly stations, the MK slide (leveraging 50KG vertical load) works with robotic arms to form a cantilevered handling system, responsible for vertical lifting and horizontal transfer of engine components. Its EU-standard interfaces enable quick integration with existing on-site KUKA robots, significantly shortening production line modification cycles and reducing upgrade costs.
3. Electronic Equipment Aging Test Lines
In LCD panel aging workshops, multiple MK slides (1000mm stroke model) form a circular conveyor line. Their 50KG vertical load stably supports high-frequency movements of lifting jigs, and ±0.1mm accuracy ensures reliable alignment between panels and test interfaces--meeting the 24/7 continuous operation requirements of workshops.
Core Competitive Advantages
1. Precise Positioning for Mid-Range Needs
Equipped with PM high-tension synchronous belts, precision-machined pulleys, and servo motor closed-loop control, the series achieves ±0.1mm repeat positioning accuracy across the full stroke--ideal for scenarios like automatic labeling and workpiece transfer that demand strict positioning.
2. Heavy-Duty Horizontal Performance
Featuring a dual-parallel guide rail design and thickened aluminum alloy sliders, the slides offer a maximum horizontal dynamic load of 200KG (capable of carrying heavy parts like automotive gearboxes and industrial robot arms). This represents a 40% load capacity increase over traditional single-rail slides, expanding applications in heavy-duty scenarios.
3. Stable Vertical Operation for Safety
Built-in anti-fall braking structures support a maximum vertical load of 50KG. Combined with guide rail preloading technology, they effectively reduce sloshing during vertical lifting, enabling safe use in vertical applications such as automatic loading/unloading machines and warehouse stackers--balancing efficiency and safety.
| ※ Basic specifications MK65 |
|
|
|
|
| Specification |
Motor speed(rpm/min) |
3:1 |
5:1 |
7:1 |
10:1 |
| Max speed(mm/s)*1 |
1833 |
1100 |
785 |
550 |
| Max load(kg) |
Horizontal |
30 |
45 |
55 |
60 |
| Vertical*2 |
9 |
15 |
16 |
17 |
| Repeatable positioning accuracy(mm) |
±0.1 |
| Rated thrust(N) |
220 |
| Standard stroke(mm)*3 |
100-6000mm/100mm interval |
| Component |
AC servo motor capacity(W) |
400 |
| Belt width(mm) |
32 |
| High rigidity linear slide(mm) |
W15XH12.5 |
| Origin sensor |
Plug |
PM-T45(NPN) |
| Type |
Motor speed(rpm/min) |
Max speed(mm/s)*1 |
Max load(kg) |
Repeatable positioning accuracy(mm) |
Rated thrust(N) |
Standard stroke(mm)*3 |
AC servo motor capacity(W) |
Belt width(mm) |
High rigidity linear slide(mm) |
Origin sensor |
| Plug |
| Horizontal |
Vertical*2 |
| MK65 |
3:1 |
1833 |
30 |
9 |
±0.1 |
220 |
100-6000mm/100mm interval |
400 |
32 |
W15XH12.5 |
PM-T45(NPN) |
| 5:1 |
1100 |
45 |
15 |
|
| 7:1 |
785 |
55 |
16 |
|
| 10:1 |
550 |
60 |
17 |
|
| MK85 |
5:1 |
2000 |
40 |
14 |
±0.1 |
340 |
100-6000mm/100 interval |
750 |
46 |
W20XH15 |
PM-T45(NPN) |
| 7:1 |
1428 |
60 |
21 |
| 10:1 |
1000 |
100 |
24 |
| MK110 |
10:1 |
1250 |
100 |
23 |
±0.1 |
765 |
100-6000mm/100 interval |
750 |
50 |
W23XH18 |
PM-T45(NPN) |
| 15:1 |
833 |
150 |
36 |
|
|
| 20:1 |
625 |
200 |
50 |
|
|
